Full average 2℃ /min 408L Temperature, Humidity and Vibration Test Chamber with LCD Touch screen
Summary:
Temperature Humidity/Vibration Combined testing chamber complies complex testing requirement for
temperature,humidity and vibration.
Characteristic:
Testing chamber combined perectly in one part with refrigerant system.spearate control system.easy
operation. Compressor system and main components are all imported world top brand .professional
designed touch screen controller,with RS485 port and auto-control temperature and humidity
program.Vibration systems are optional according to customer requirement. Professional vibration system
installation ensure high isolation of air and temperature, as well as high transmission of mechanical
property.
Product Speifications
| 1,Temperature |
| 1.1 Temperature range | -40℃ ～ +150℃ |
| 1.2Temperature uniformity | ≦±2.0℃ |
| 1.3Temperature fluctuation | ±0.5℃ |
| 1.4Heating time | From -40℃ to +150℃ Full average 2℃ /min no-load,including vibration table |
| 1.5Cooling time | From +150℃ to -40℃ Full average 2℃ /min no-load,including vibration table |
| 2,Humidity |
| 2.1 Humidity range | 20%R.H～98%R.H |
| 2.2Control range |
|
| 2.3Humidity uniformity | ±3.0％RH |
| 2.4Humidity fluctuation | ±2.0％RH |
| Temperature and humidity performance test is in accordance with the relevant provisions of the IEC60068 -3 standard measurement; sensor placed in the unit outlet. |
| Ⅲ. Chamber Structure |
| 1.Chamber size | Workspace volume: W 600 × H 850× D 800 mm Exterior size: W 1160 × H Pending × D 2500 mm(Not including the protruding part) |
| 2．Insulation box | wall material: high-quality carbon steel with static color spray inner wall material: SUS304 # matte stainless steel plate Insulation materials: rigid polyurethane foam insulation layer + glass fiber. |
| 3．Door | Single door, single window, left open, handle on right hand side A. Window W460 * H560mm with energy-saving lamps 1 only B. Explosion-proof handle C. Button: SUS # 304 |
| 4.Supply air circulation system | A. Special stainless steel lengthened axis of the motor 1 B. SIROCCO FAN C. Adjustable shutter outlet |
| 5.Heater | Bare wire heater (no flammable gas in the box) |
| 6. Humidifier | Water basin heating and humidification method; Stainless steel sheathed heater; Heater control: no-contact control (SSR); Water level control device, heater anti-dry device. |
| 7.Temperature measuring body | High precision DIN A class, dry bulb SUS # 304 PT 100Ω 1 Pcs |
| 8．Cable port | Φ50mm*1 located on both sides(each*1) with rubber stopper and plastic cover |
| 9．Sample holder | Two layers of stainless steel sample holder, load capacity 30kg/layer |
| 10. Water-supplying system | Pump water supply automatically |
Testing Standard
● GB-2423. 1-89 (IEC68-2-1)Test A: Low Temperature Test
● GB-2423. 2-89 (IEC68-2-2)Test B: High Temperature Test
● GJB360. 8-87 (MIL-STD. 202F) High Temperature Life Test
● GBJl50. 3 (MIL-STD-810D) High Temperature Test
● GJBl50. 4 (MIL-STD-810D) Low Temperature Test
● GB2423. 3-93 (IEC68-2-3)Test Ca: Constant Heat Test
● GB2423. 4-93 (IEC68-2—30)Test Db: Damp Heat Alternative Test
● GJBl50. 9-93 (MIL-STD-810D) Damp Heat Test
Product Details

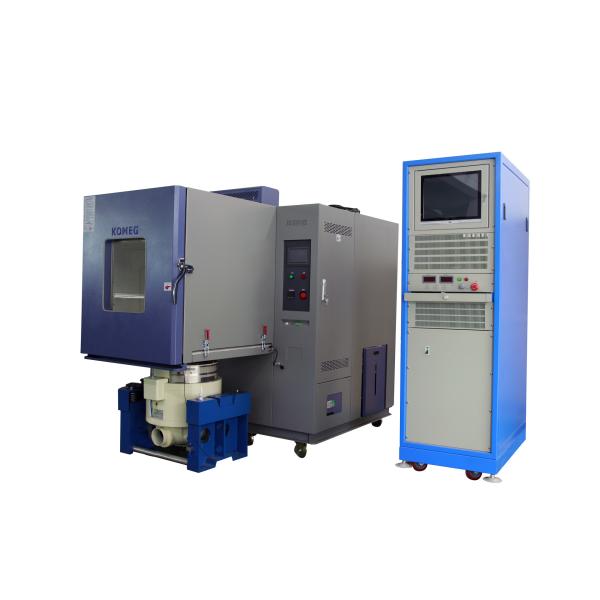

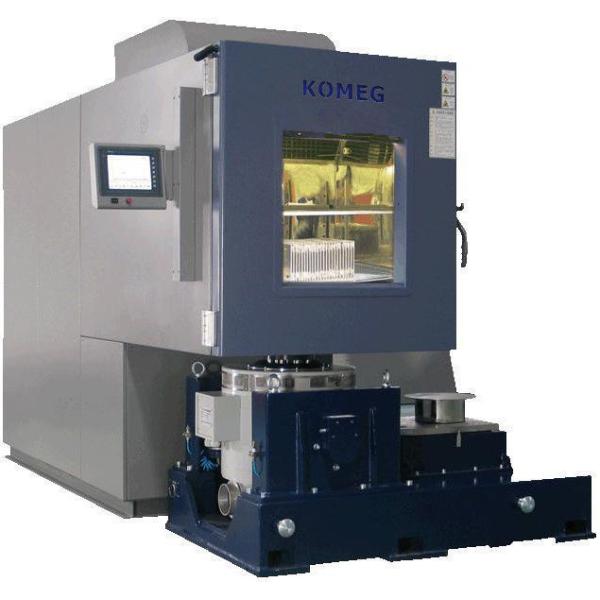

Photos show
Pre-Sales Service
1.Inquiry support.
2.Consulting support.
3.Sample testing support.
4.Visiting welcomed.
Packing Details
We use standard inner box PP film and carton plywood for the packing.
Product After-sale service
If you face any problems in future during testing process we promise we will
give you a reply within 48 hours and solution provide within 3 working days. We
can offer operation video and English operation muanual. We can provide
video-conference. If customers require on-site service, the transport and travel
expense shall be borne by customer.
